What Are Sewer Cleanouts and Why Do You Need Them?
Many things can cause a blockage in your sewer line underground. Tree roots, damaged or defective pipes, sanitary and personal items, toilet paper, paper hand towels, toilet cleaners, wet wipes, grease, and other foreign objects, to name a few, that make their way into your sewer system can cause blockages. Unblocking the drain using a proper blocked drain clearing process is easier, faster, and less stressful for both you and the Plumber if your home has drain or sewer cleanouts. Cleanouts are also a must have access point for carrying out regular preventive drain maintenance.
From our experience about 80% of Sydney homes we visit to clear a blocked drain will have one or more accessible sewer cleanouts somewhere on the property that will be suitable for us to gain access into their sewer line underground to use our high-pressure water jet and CCTV drain camera inspection equipment to clear the blocked drain they are experiencing.
90% of existing sewer cleanouts are not original cleanouts. They are cleanouts that have been installed by other Plumbers on previous service calls to clear blocked drains over the years due to there being no suitable access to the customers drains underground available at the time of their call. This also means there are many cleanouts that have been installed by us for the same reason over the last 60 years that we and other Plumbers are continuing to use to service the same drains.
What Is a Sewer Cleanout Used For?
Cleanouts provide Plumbers with direct clearing and inspection access to your sewer line underground via a vertical access shaft at ground level in the event you have a sewer blockage. If you have one or more cleanouts they can be located anywhere outside of your home in the front or back yard or can be at the side of the house outside a bathroom, kitchen, or laundry. Cleanouts typically go unnoticed until there is a problem. It is important not to confuse a “Gully” with a "Cleanout" as not all Gully types are suitable for blocked drain clearing or inspection.
Sewer Cleanout Access PVC
Having proper access to your underground sewer pipes is the most important consideration for a Plumber dealing with a blocked drain
What Is the Difference Between a Cleanout and An Overflow Relief Gully?
Sewer Cleanout (CO)
A Cleanout (CO) will provide Plumbers unhindered access via a direct vertical shaft to the sewer line underground. Depending on the design and location of the Cleanout, the shaft will provide access to either one, two or three directions within the sewer line - upstream, downstream, branch drain. Unlike a Gully which has a loose plastic or metal grate on top, Cleanouts will always have a sealed plastic or metal lid secured by either screws, bolts, or a screw on or bayonet cap. As Cleanouts are a direct access point to the sewer line, they must be sealed to stop sewer gases from escaping into the environment.

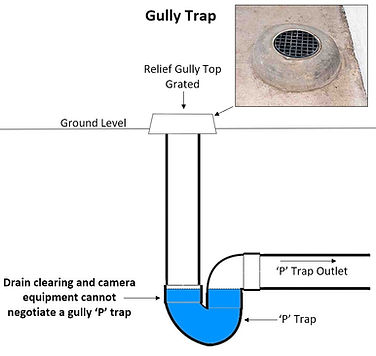

Sewer Overflow Relief Gully (ORG)
A Gully or ORG (Overflow Relief Gully) has only one purpose. To provide an overflow point in the event of a Sydney Water Sewer Main Line blockage, so sewage does not backup inside the house. Unlike a Cleanout which has a sealed lid or screw on cap, Gullies will always have a loose plastic or metal grate on top. The grate will float off during overflow events allowing free flow of wastewater onto the ground outside the house preventing flooding inside the house. Gullies do not need to be sealed because they have a 'P' trap water seal at the bottom of the shaft which prevents sewer gases from escaping.
Gullies come in many different designs, shapes, and sizes. If you want more information about gullies? Just Google "what is a sewer gully" or "what is an ORG" for more information or you can call us.
Cleanouts Used to Clear and Inspect Blocked Sewer Lines
The word "Cleanout" is a generic term used to describe any above ground level direct access point to the sewer line underground. An overflow relief gully (ORG), floor waste or fixture trap, disconnector gully, plumbing fixture outlet, vent, or underground inspection opening (IO) is not a sewer Cleanout.
Cleanouts come in many different designs, shapes and sizes and are used specifically for sewer and drain clearing, pipe inspection and drain location purposes with the use of specialist drainage tools such as high-pressure water jets, electric eels, CCTV drain cameras and drain location equipment.
Watch this drain clearing video on our home page to see us working through a sewer cleanout.
Sewer Cleanout Access
PVC Bolted Trap Screw
Sewer Cleanout Access
Cast Iron Bayonet Lid
Sewer Cleanout Access
PVC Stack Gate
Sewer Cleanout Access
PVC Inspection Point
Do All Homes Have Sewer Cleanouts?
-
Not all homes have cleanouts
-
Not all cleanouts are suitable
-
Not all cleanouts are accessible
What If I Don't Have a Sewer Cleanout?
If you do not have drain Cleanouts (CO), sewer blockages can still be cleared but it can sometimes be more challenging and time consuming. Once it has been established that suitable Cleanout access is not available the Plumber will need to gain access to the underground sewer line by other means such as excavating down to the sewer line to access an Inspection Opening (IO) or to cut into the existing pipework to create an access point, dismantling or cutting into vents or removing internal fixtures such as toilets, basins or laundry tubs, however, clearing blocked sewer lines from inside the house or by removing plumbing fixtures should always be considered a last resort.
Why Would a Sewer Cleanout Not Be Suitable?
There are no two sewer systems the same. A sewer system is a unique underground network of internal pipes running under your home called Internal Branch Drains. Branch drains connect plumbing fixtures such as toilets, basins, showers, sinks, tubs and baths inside your house via junctions to a network of sewer pipes outside the building called the External Main Drain which leads to your connection with the Sydney Water Sewer Main Line. A Cleanout installed on a branch drain will only give access to that branch drain and possibly a section of the main drain but not to the entire sewer network and Cleanouts installed on the main drain usually only give access to the main drain and not the branch drains.
As sewer systems are unique to each property there are infinite variations to the above however sometimes although there may be existing Cleanouts available on the property the blockage can be located anywhere within the homeowner's sewer network that is not serviced by those existing Cleanouts. If this turns out to be the case, then other work will need to be carried out or another Cleanout installed to gain access to that affected part of the sewer line.
I Can't Find Any Sewer Cleanouts?
Most homes have one or more Cleanouts but unfortunately, they can be difficult to find. Sewer Cleanouts need to be installed in such a way as to be exposed at or above ground level and always kept clear so they can be found by the homeowner or a Plumber when they are needed however over time existing Cleanouts can become concealed or hidden in one way or another.
-
Buried by landscaping works.
-
Concealed under hot water heaters and air conditioner units.
-
Covered over by concrete paths, driveways, paved areas, or wooden decks.
-
Built over by garden sheds, retaining walls, tennis courts, swimming pools or home extensions.
-
Hidden in garden beds under leaves, dirt, plants, hedges, trees or simply covered by grass or a pot plant.
The best way for you to find sewer Cleanouts on your property is to follow the path of the sewer line using your Sewer Service Diagram (SSD). An SSD is a plan or map of your sewer system. All properties have a Sewer Service Diagram, if you do not have one you can get one online from Sydney Water or we can get one for you.
It is important to understand that due to drainage systems being unique to each property a Plumber visiting your home for the first time will not have any idea where your sewer line is located on your property or where your Cleanouts are, if you have any. This means the first job for the Plumber when he arrives will be to determine the location and depth of your sewer line and the location of your connection with the Sydney Water Sewer Main Line. Without a Sewer Service Diagram to point the way this can still be relatively easy for many jobs but at other times it can be extremely difficult and time consuming. Having your homes Sewer Service Diagram available when your Plumber arrives to unblock your drain is always a good thing, it will save time and frustration for everyone involved and the Plumber will be grateful and will thank you for that.
20% of homes we visit to clear a blocked sewer line will not have any cleanouts at all or their existing cleanouts will not be suitable, inaccessible, concealed in some way or cannot be found.
Cast iron cleanout hidden in the garden under a shrub and leaves and covered by a sandstone rock.
Sewer Cleanout Access Cast Iron
Homeowner has lived in the property for 25 years and had no idea this sewer cleanout existed!
Examples Of PVC Sewer Cleanout Installation
When sewer blockages are located in a part of the drainage system that cannot be accessed via existing ground level Cleanouts Plumbers may have to excavate down to the sewer pipe underground to expose an Inspection Opening (IO) to gain access into the pipe to clear the blocked drain. Once the blockage has been cleared one option is to simply reseal the Inspection Opening and backfill the excavation however any future blockages in the same section of drain will require another excavation in the same location to access the same Inspection Opening again. This is true particularly in the case of recurring tree root blockages. As the drain has already been excavated in the first instance to gain access to the Inspection Opening it is always a good idea to install a Cleanout in this location so any future blockages can be cleared quickly without having to excavate again. This saves time and money for the homeowner on any future callouts for blocked drains or for regular preventive drain maintenance servicing to remove recurring tree root regrowth.
Single Cleanout Installed On PVC Sewer Line
Double Cleanout Installed On Earthenware Sewer Line
Single Cleanout Installed On Earthenware Stormwater Line
What Is a Sewer Inspection Opening (IO)?
If Cleanouts (CO) cannot be found your Sewer Service Diagram (SSD) will also show where the sewer Inspection Openings (IO) are located. Sewer Inspection Openings are sealed earthenware or PVC access points on the sewer line underground that are also used for drain clearing and inspection purposes however Inspection Openings are not accessible at ground level like Cleanouts, they are located underground directly on top of the sewer pipe so they will need to be excavated and exposed to gain access into the sewer line. The depth of excavation needed to expose Inspection Openings can vary from one property to another from 300mm to over two metres in depth and like Cleanouts, Inspection Openings can also be hidden or concealed under surface structures. All homes will have several sewer Inspection Openings as Australian Standards AS/NZS 3500 has always required Inspection Openings to be installed in specific locations on all sewer lines when they are installed. Older earthenware Inspection Openings installed up until the late 1970's when earthenware pipe joints were sealed with cement will consist of an oval shaped earthenware cap with a cement seal on top, while more recent earthenware Inspection Openings installed when rubber ring seals were introduced consist of a round earthenware plug with a black rubber ring seal held in place with a metal clip exactly like in the example below, and PVC Inspection Openings simply have a threaded PVC screw on cap.
1. Excavation to expose sewer inspection opening to access drains under bathroom
2. Inspection opening exposed with cap, rubber ring seal and metal clip in place
3. Inspection opening exposed with cap, rubber ring seal and metal clip removed
Sewer Diagram Bathroom Example (Earthenware)
1 - Sydney Water Sewer Main Line (Owned by Sydney Water)
2 - Sydney Water Manhole Access Chamber
3 - Point of connection with Sydney Water Sewer Main Line
4 - Main Drain (External Drainage located outside of house)
5 - Branch Drains (Internal Drainage located under house)
6 - Main Drain Inspection Opening (IO) (Underground)
7 - Branch Drain Inspection Opening (IO) (Underground)
8 - Main Inspection Shaft (IS) (Required on all sewer lines)
9 - Sewer Cleanout (CO) (Not all homes have Cleanouts)
10A - Toilet Pan - Direct connection to Branch Drain
10B - Basin - Fixture Pipe connection to Branch Drain
10C - Bath - Direct charging connection to Floor Waste P Trap
11A - Overflow Relief Gully (ORG) P Trap (For sewage overflows)
11B - Shower - Direct connection to Branch Drain via P Trap
11C - Floor Waste - Direct connection to Branch Drain via P Trap
12 - Stack Branch - Servicing 2nd floor Plumbing Fixtures
13 - Pipe length - Before 1980 - 600mm | After 1980 - 1200mm
14 - Pipe length house to main line - 5 metres to 100 metres
15 - Vent line - Servicing vent pipe to above roof
16 - Sewer line upstream servicing kitchen, laundry & ensuite
Your Sewer Pipe Drainage System Consists of Three Sections
-
Fixture Pipes - A Fixture Pipe which is usually a 40mm - 50mm diameter pipe connects a single Plumbing Fixture inside your home to its Branch Drain under the floor underground. Fixture Pipes are above ground inside your house and are usually PVC pipes. If you look under your Basin, Kitchen Sink or Laundry Tub you will see that Plumbing Fixtures "Fixture Pipe".
-
Branch Drains - Every Plumbing Fixture in your home also has a dedicated Branch Drain which is usually a 100mm diameter pipe under the floor underground that carries the waste from a single Plumbing Fixture to the Main Drain outside the house. Your Fixture Pipes are connected to your Branch Drains and your Branch Drains are connected to your Main Drain with junctions. Your Branch Drains can be earthenware or PVC pipes. You will have multiple Branch Drains and they are usually found under your home underground, and they are called "Internal Drainage".
-
Main Drain - This is a single sewer line which is usually a 100mm - 150mm diameter pipe underground that runs from your house down to the point of connection with the Sydney Water Sewer Main Line. Your Main Drain carries waste from all the Plumbing Fixtures inside your house via Fixture Pipes and Branch Drains down to where your sewer line junctions into the Sydney Water Sewer Main Line. Your Main Drain can be earthenware or PVC pipes and are usually found underground outside of your house. We call this part of your sewer system "External Drainage".
To recap:
-
Cleanout (CO): Ground level access point designed for blocked drain clearing and inspection purposes.
-
Overflow Relief Gully (ORG): Designed for sewage overflows when sewer backups or surcharges occur.
-
Inspection Opening (IO): Buried access point also used for drain clearing but will need to be excavated.
